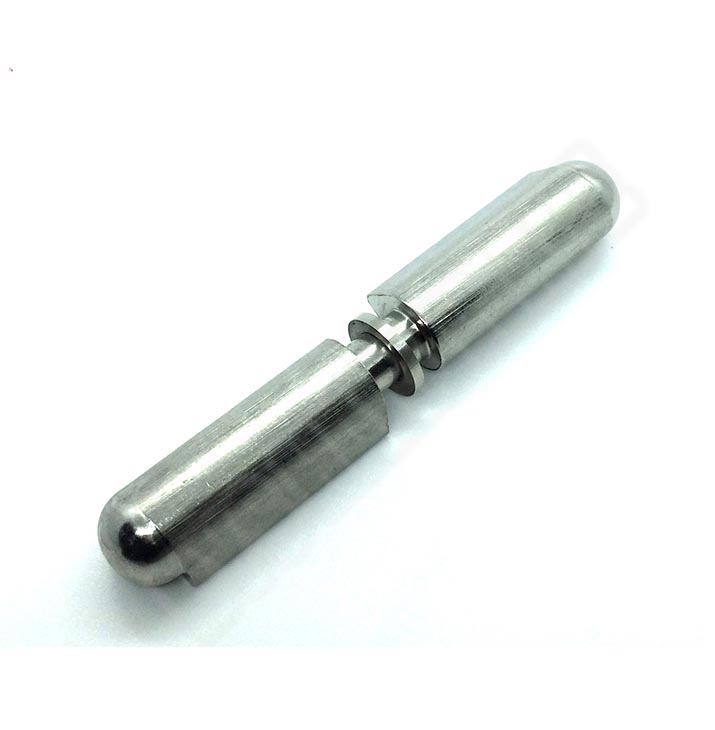

BYS-SSBSSP SERIES / BYS-SSBSSPGF SERIES
STAINLESS STEEL 304 BODY, STAINLESS STEEL 304 PIN, STAINLESS STEEL 304 WASHER
TYPE: INSERT TYPE OR ONE PIECE BODY & PIN

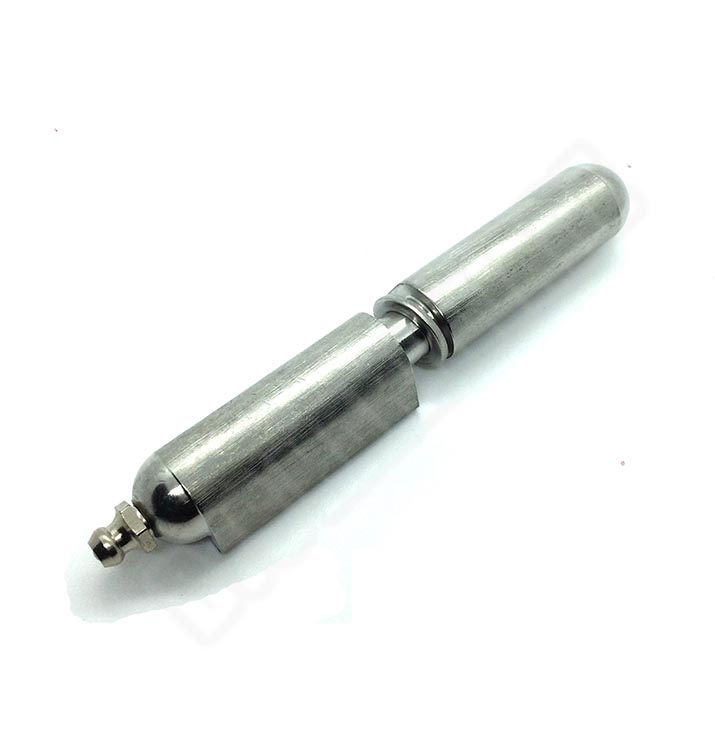

GREASE FITTING: STAINLESS STEEL
| PART NO | L/IN. | H/IN. | D/IN. | d/IN. |
| BYS-SSBSSP-040(GF) | 1.580 | 0.380 | 0.315 | 0.197 |
| BYS-SSBSSP-050(GF) | 1.970 | 0.380 | 0.315 | 0.197 |
| BYS-SSBSSP-060(GF) | 2.360 | 0.460 | 0.394 | 0.236 |
| BYS-SSBSSP-070(GF) | 2.760 | 0.510 | 0.450 | 0.236 |
| BYS-SSBSSP-080(GF) | 3.150 | 0.629 | 0.550 | 0.315 |
| BYS-SSBSSP-0100(GF) | 3.940 | 0.770 | 0.630 | 0.394 |
| BYS-SSBSSP-0120(GF) | 4.750 | 0.770 | 0.630 | 0.394 |
| BYS-SSBSSP-0135(GF) | 5.320 | 0.866 | 0.709 | 0.500 |
| BYS-SSBSSP-0150(GF) | 5.910 | 0.984 | 0.787 | 0.500 |
| BYS-SSBSSP-0180(GF) | 7.090 | 0.984 | 0.787 | 0.500 |
| BYS-SSBSSP-0200(GF) | 7.870 | 1.100 | 0.905 | 0.590 |
